Aqua Star
125 Models
The Bosch AquaStar is
designed to last. The quality of the AquaStar begins with this inside
story: all water parts are solid copper or solid brass. The unit is
constructed with stainless steel and aluminum. Unlike tank heaters,
every part is replaceable or recyclable. Properly maintained, this may
be the last water heater you ever
buy.
- all water parts are solid copper or solid brass
- unit is constructed with stainless steel and aluminum
- casing is finished with baked epoxy
- heat exchanger is made of solid copper
- burners are made of stainless steel
- unit has a safety thermocouple and overheat shutoff protection
- CSA design certified
- compliant with ASHRAE 90.1
- 82% efficiency rating and .80 energy factor
- longest warranty (15 years on the heat exchanger when
professionally installed)
See
warranty for 240FX
Save Energy and Money
• When hot water shuts off, the AquaStar shuts off.
Built to Last
• Solid brass and copper water parts,
stainless steel burners and copper heat exchanger.
By BOSCH
• 60 years of tankless water heating experience, and an unparalleled
reputation for manufacturing quality.
|
Controlled Energy Corporation (CEC), North America’s leading
supplier of tankless water heaters, announces the latest
technical innovation from Bosch engineers in Germany. The
revolutionary hydro-generated ignition system incorporates hydro
technology into a domestic water heating appliance. Typically,
domestic water heaters have either a standing pilot,
electrically generated pilot ignition, or battery (D-Cell)
generated pilot ignition system.
This new technology generates pilot spark from the flow of
water. Like a hydro dam producing electricity, the 125HX system
ignites the burners when water is flowing without the need for
electricity or batteries. This patented technology is only
available on Bosch AquaStar tankless gas water heaters. |
|
|
General Specifications |
|
WATER INLET |
GAS INLET CONNECTION |
MIN. NATURAL GAS LINE |
MIN. LP GAS LINE |
HEIGHT |
WIDTH |
DEPTH |
RECOMM. MIN WATER PRESSURE |
MAX WATER PRESSURE |
MIN GAS PRESSURE (W.C.) |
LP GAS |
NATURAL GAS |
|
All Models* |
1/2" NPT |
1/2" NPT |
3/4" NPT |
5/8" |
29 3/4" |
18 1/4" |
8 3/4" |
30 PSI |
150 PSI |
11" W.C. |
7" W.C. |
|
|
|
|
|
|
|
|
|
|
|
|
|
| 38B |
1/2" NPT |
1/2" NPT |
3/4" NPT |
5/8" |
25 3/8" |
10 5/8" |
9 1/8" |
30 PSI |
150 PSI |
11" W.C. |
7" W.C. |
|
*Not
Including the 38B |
| |
|
Specifications by Model
|
|
MODEL |
EFFICIENCY |
ENERGY
FACTOR |
BTU
INPUT |
FLUE SIZE |
SHIPPING
WEIGHT |
GALLONS PER MINUTE AT:† |
|
45° |
55° |
65° |
75° |
90° |
|
38B |
80% |
.66 |
40,000 |
4" |
25 lbs. |
1.3 |
1.0 |
0.9 |
0.8 |
0.6 |
|
125B,
BS, BL |
82% |
.69 |
117,000 |
5" |
44 lbs. |
4.0 |
3.3 |
2.8 |
2.4 |
2.0 |
|
125X & HX |
82% |
.80 |
117,000 |
5" |
44 lbs. |
4.0 |
3.3 |
2.8 |
2.4 |
2.0 |
|
125FX |
80% |
.78 |
125,000 |
4" |
52 lbs. |
4.0 |
3.3 |
2.8 |
2.4 |
2.0 |
|
*Not
Including the 38B |
†Degree
Rise |
|
|
The Aqua Star warranty
AquaStar water heaters are warranted by the
Manufacturer (Bosch) through Controlled Energy Corp. Controlled
Energy Corp. (CEC) will furnish a replacement heat exchanger and
will furnish a replacement of any other part which fails in normal
use and service within the applicable periods specified below, in
accordance with the terms of this warranty. The CEC replacement will
be warranted for the unexpired portion of the original warranty.
This warranty will be valid only for water heaters in possession of
the original purchaser as recorded on the warranty card.
If the heat exchanger fails within fifteen (15) years after the
original installation and operation (units installed on or after
January 01, 2001), CEC will furnish a replacement heat exchanger.
However, if the water heater is installed in other than a single
family dwelling, or is used as a circulating heater in any
application, this heat exchanger warranty is limited to two (2)
years from date of original installation and operation.
If any other part fails within two (2) years after original
installation and operation, CEC will furnish a replacement part free
of charge.
This warranty does not cover any labor costs
associated with service, removal or re-installation of part(s). All
such costs must be borne by the Purchaser.
This warranty will not apply:
1. to defects or malfunctions resulting from failure to properly
install, operate or maintain the unit in accordance with the printed
instructions provided;
2. to damage or abuse, accident, neglect or freezing and other acts
of nature;
3. to damage resulting from operation with either the thermocouple
or overheat sensor removed;
4. to failure of the heat exchanger resulting from the operation of
the water heater in a corrosive atmosphere or at water temperatures
exceeding the maximum rating, or if the water heater is not supplied
with potable water.
5. to defects or damage cause by any attachment or modification,
including any energy-saving device.
Note: The water heater must be free of damaging scale
deposits and not subject to gas pressures greater than those shown
on the rating plate, which must not be altered, defaced or removed.
| |
1. The Owner should contact the
dealer who sold the water heater covered by this warranty or
2. Owner should submit the warranty claim directly to CEC at the
address listed below, and they will arrange for the handling of
the claim.
3. Whenever any inquiry or service request is made, be sure to
include the water heater model number, the date of manufacture,
date of installation, Dealer's name and the watts and voltage.
4. When returning the water heater or component part(s), they
must be individually tagged and identified with the Returned
Goods Authorization # issued by CEC and shipped prepaid to CEC
at the address below. |
No one is authorized to make any other warranties on behalf of CEC.
It is expressly understood that the replacement warranty of CEC
shall be in lieu of any and all other warranties, express or
implied, including warranties of merchantability or fitness for a
particular use or purpose, and further that CEC shall not be liable
for any loss or damage directly or indirectly arising from the use
of the hot water heater, or for any consequential damages arising
from such use (including damages from water leakage). CEC's sole
liability with respect to any defect shall be for the replacement of
defective part(s). Some states do not allow such limitations and
exclusions, so the above may not apply to you. This warranty gives
specific legal rights. You may also have other rights which vary
from state to state. In the event that warranty service is required,
reasonable proof of the effective date of installation and operation
must be provided; otherwise it may not be possible to honor
|
| All
Installation manuals are located on the Technical page
located/linked at the top of every web page. |
Technical Page
 $949.00 |
$949.00 |
| Aqua Star 250SX
NG
(Natural Gas)
provides endless hot water for two
major applications simultaneously. |
Aqua Star 250SX
LP (Liquid Propane)
provides endless hot water for two
major applications simultaneously. |
|
|
 $949.00 |
$949.00 |
| Aqua Star 240FX
Natural Gas includes wall
mounting brackets, pressure relief valve.
[OBSOLETE MODEL] |
Aqua Star 240FX
Propane includes wall
mounting brackets, pressure relief valve.
[OBSOLETE MODEL] |
|
$99.00
|
FXHood Wall Vent Terminator for FX
model 240.
The 125FX pricing
below includes the FXhood. The Fxhood for horizontal venting.
If you are venting out through a side wall and are purchasing the
Aqua Star 240FX, you will need this part. The FXhood has a
back flow vent already included in the product. |
|
|
$739.00
Aqua Star 125 FX Natural
Gas INCLUDES FXhood,
wall brackets and pressure relief valve.
|
$739.00
Aqua Star 125 FX Propane
INCLUDES FXhood, wall brackets and pressure relief valve.
|
|
|
|
$589.00
AquaStar 125HX LP
no pilot
|
$589.00
AquaStar 125HX NG no
pilot |
|
Aqua Star

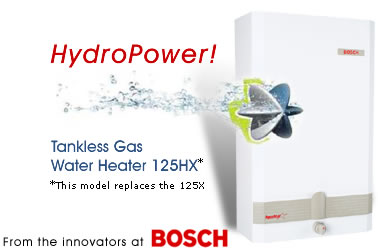

125HX The revolutionary
hydro-generated ignition system incorporates hydro
technology into a domestic water heating appliance.
Typically, domestic water heaters have either a standing
pilot, electrically generated pilot ignition, or battery
(D-Cell) generated pilot ignition system.
This new technology generates pilot spark from the
flow of water. Like a hydro dam producing electricity,
the 125HX system ignites the burners when water
is flowing without the need for electricity or
batteries. This patented technology is only available on
Bosch AquaStar tankless gas water heaters. |
|
|
|
|
$499.00
AquaStar 125B
LP |
$499.00
AquaStar 125B
NG |
|
Aqua Star 125B
Click Here for Technical Information
The perfect home Hot Water
Machine can deliver a constant never-ending supply of hot water
at safe temperatures. Designed to be the central hot water
heater for your home, and it will provide endless hot water for
showers, tubs, laundry, dishes and more - but not all at once.
Like the larger model, it can be used commercially.
|
|
|
$599.00
AquaStar 125B LPS Solar |
$599.00
AquaStar 125B NGS Solar |
|
Aqua Star 125BS
Solar
Click Here for Technical Information
Specifically designed as a
backup to pre-heated water produced by solar based system, the
125 BS features a thermostatic control for steady outlet-
regardless of incoming temperatures. This unit uses minimal to
zero energy when the solar heater is already at desired
temperature.
|
|
|
$309.00
Aqua Star 38 LP |
$309.00
Aqua Star 38 NG |
|
Aqua Star 38B
Click Here for
Technical Information
A small, point-of-use water
heater for cottages, camps and other applications such as farms
and ranches. Will provide a shower at 1.5 gallons/minute if
ground water is at least 60¼. |
|
|
$259.00 AquaStar can be power vented, so a chimney does
not have to be made if you do not have a chimney now.
Click Here for more information on
Power Vents
The AQ1 is used
for side wall venting with the Aqua Star 125B, 125X, 125BL and
125BS.
|
|
|
|
|
|
|
|
